Home  »  Products  »  Drop-out Fuse Cutout » Insulator for Polymer Cutout


Polymer Cutout Insulators are manufactured with HTV Silicone Rubber by injection or molding technology, the same materials and method used in all Composite Insulators and Arresters. They are lighter and less fragile than porcelain ones, which make them simple to install and low costing to ship, store and handle. WINNING® supplies Polymer Insulator for Drop-out Fuse Cutout (Leakage Distance: 320-1020mm) from 12kV up to 36kV.

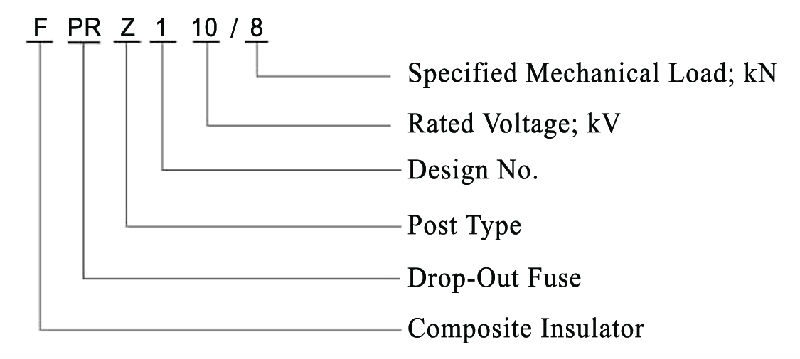

Product Model Definition

Model

      FPRZ  - Vol./ SCL

Φ34×300

Core Rod × Length

Rated

Vol.

(kV)

Specified

Cantilever

Load

(kN)

Leakage

Distance

(mm)

Power

Frequency

Withstand

Vol. (kV)

Lightning

Impulse

Withstand

Vol. (kV)

Weight

kg

Dry

Wet

FPRZ-15/15-Φ34×300

15

15

320

48

35

75

1.25

FPRZ-15/10-Φ24×310

15

10

380

48

35

125

1.30

FPRZ-15/7-Φ24×300

15

7

380

57

40

125

1.30

FPRZ1-15/7-Φ24×265

15

7

380

57

40

125

1.32

FPRZ-15/4-Φ24×274

15

4

400

57

40

125

1.55

FPRZ-15/12.5-Φ34×340

15

12.5

420

48

35

125

2.05

FPRZ-24/8-Φ34×356

24

8

640

68

50

150

2.40

FPRZ1-24/8-Φ34×445

24

8

640

68

50

150

2.72

FPRZ2-24/8-Φ34×356

24

8

620

68

50

150

2.35

FPRZ3-24/7-Φ28×356

24

7

620

68

50

150

2.00

FPRZ5-27/7-Φ28×356

27

7

680

68

50

150

2.10

FPRZ3-27/7-Φ30×445

27

7

680

80

50

150

2.25

FPRZ1-33/7-Φ40×445

33

7

730

100

80

170

3.20

FPRZ2-33/7-Φ40×535

33

7

730

100

80

170

3.80

FPRZ7-33/7-Φ40×445

33

7

730

100

80

170

3.15

FPRZ-36/5.5-Φ28×445

36

5.5

960

100

80

170

2.75

FPRZ-36/10-Φ38×550

36

10

960

100

80

175

4.55

FPRZ5-36/7-Φ30×445

36

7

1020

100

70

175

3.30

Please contact us for the drawing of relevant model. Custom size is available.
