Insulator for Porcelain Fuse Cutout

  The cutout insulator is part of the porcelain fuse cutout. It is an elongated, skirted insulator typically formed of porcelain. It composes the electrical cutout together with the end fittings and elongated fuse. WINNING® is able to supply porcelain cutout insulators from 10kV to 36kV.

Cat.

No.

Rated

Voltage

(kV)

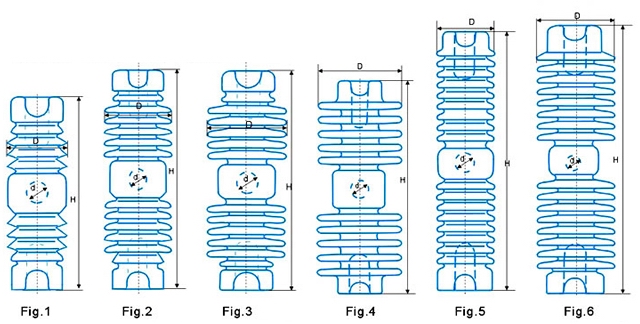

Fig.

No.

Leakage

Distance

(mm)

Cantilever

Strength

(kN)

Dimensions (mm)

Shed

No.

Weight

(kg)

H

D

d

15101

15

1

220

18

287

87

32

8

2.8

15102

15

1

240

18

287

90

32

8

2.8

15103

15

1

255

20

287

105

32

12

3.2

25201

25

2

300

10/12.5

376

90

32

12

3.5

25202

25

2

340

10

376

96

35

12

3.7

25203

25

2

280

10

376

87

32

12

3.4

25204

25

2

360

10

376

102

35

12

3.9

25205

24/27

3

470

10

376

131

35

12

5.8

25206

24/27

4

460

10

376

129

32

10

6.0

25207

24/27

5

435

6.8/10

467

95

32

17

5.2

25208

24/27

4

450

10

376

127

32

10

5.8

25209

24/27

4

500

10

365

150

35

10

6.5

25210

24/27

4

550

10

375

155

35

10

6.9

35301

33/36

6

660

6.8/10

467

130

35

16

7.5

35302

33/36

6

660

6.8/10

467

121

32

16

7.5

Custom size/drawing of porcelain cutout insulators are available upon request.
