Link Fittings

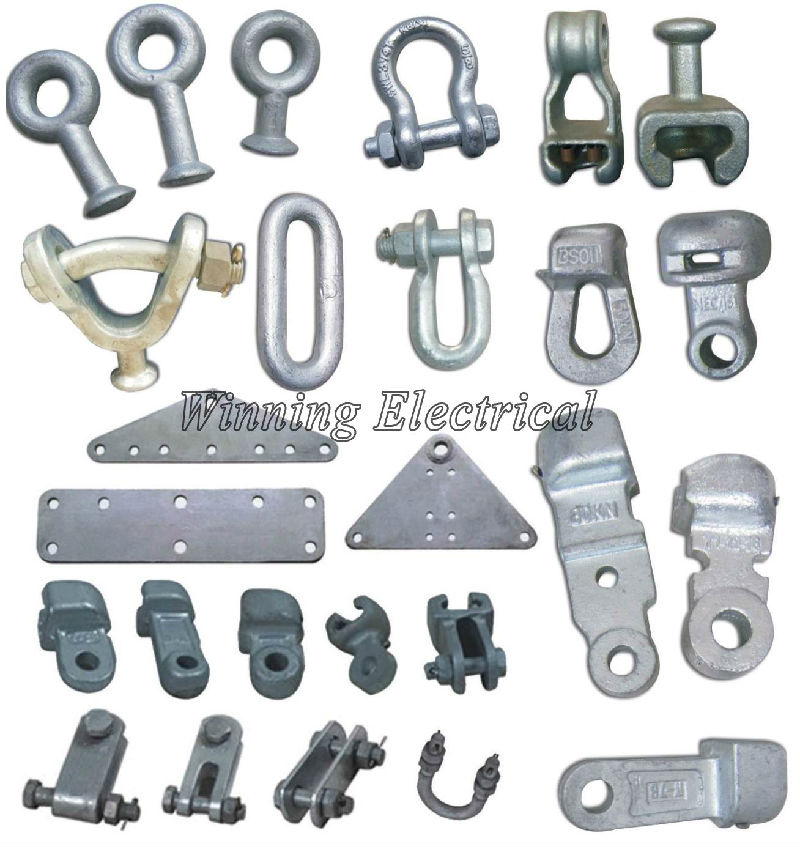

Link fittings are used to link clamps to insulators, or to link insulator and wire clamp to tower arms and substation structures. WINNING® link fittings are mainly made of heat treated steel that is more suitable for forging with good performances. Dimensions of ball and socket for special linkage are in accordance with IEC 120 and GB4056-83 standards.

Scope: (Drawings are listed in the catalogue, please go to DOWNLOAD chapter)

1-Ball Eye (Q, QP, QH type)

2-Ball Eye (Parallel type)

3-Ball Eye (perpendicular type, horn holder type)

4-Ball Eye (QA, QP type)

5-Ball Eye (QU type)

6-Socket-Clevis Eye (W type)

7-Socket-Clevis Eye (WK, WR type)

8-Socket-Clevis Eye (WS type, WS elongated type)

9-Socket-Clevis (WSY type)

10-Shackle (UF type)

11-Shackle (U type, UJ-Strengthened type)

12-PH type Extension Ring

13-Eye Chain Links (ZH type)

14-Extension Rod (YL, YLP type)

15-Clevis with Z, ZS, ZBS, P, PS, PD, UB, V, VD types

16-Joint Hung Plate

17-U Bolt

18-GD Twisted Strap

19-Support Plate

20-Towing Plate

21-Ground Wire Hanger

22-Adjuster Plate (PT, DB type)

23-Double Yoke Plate

24-Yoke Plate with different types
